General purpose THREE PHASE motors
MS SERIES

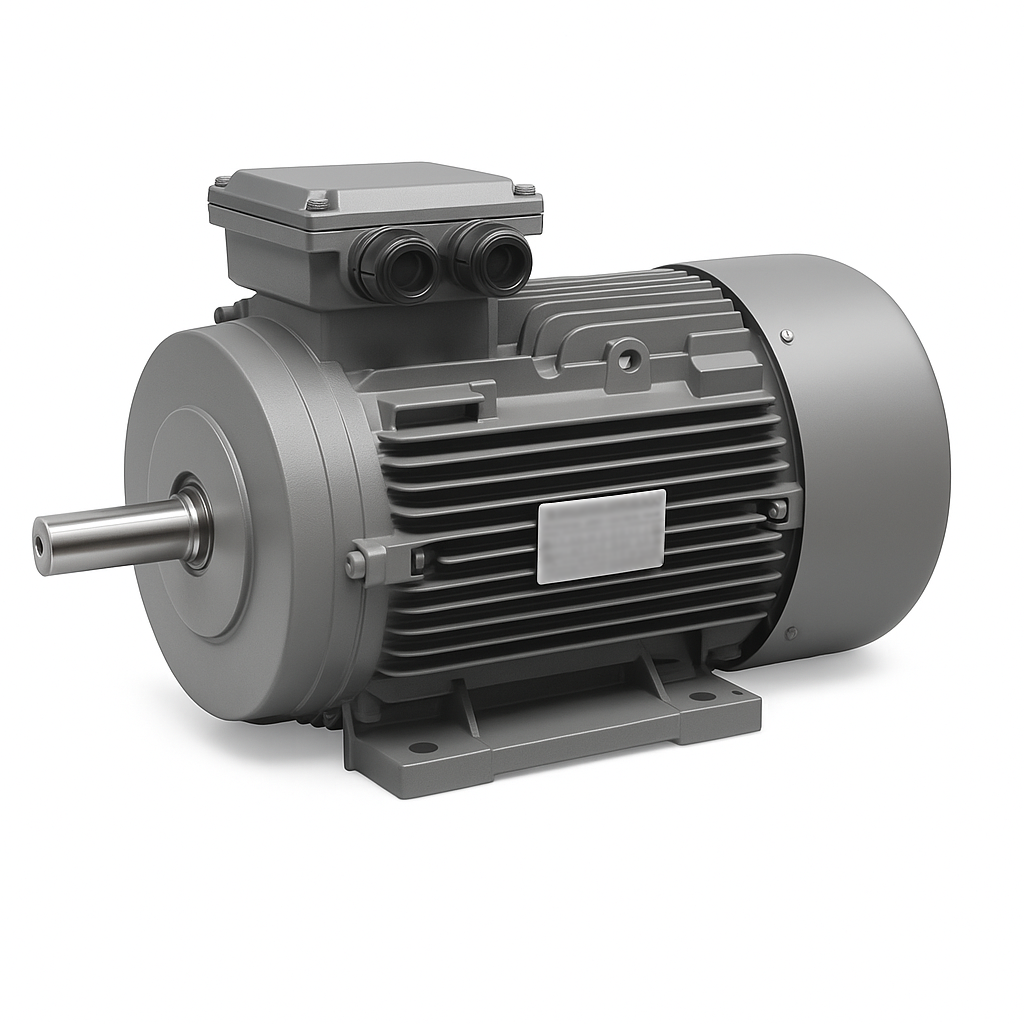

A standard-efficiency IE1 three-phase induction motor designed for reliable operation across a wide range of general industrial applications. Built with an IEC aluminum frame and TEFC enclosure, it ensures robust performance in light to medium-duty environments.
Voltage: 230/400V or 400/690V (depending on configuration)
Pole: 2, 4, 6
Frame: IEC 56 – 160
RPM: 3000 / 1500 / 1000
Enclosure: TEFC (Totally Enclosed Fan Cooled), IP55
Power range: 0.06 – 18.5 kW
Mounting: B3 (foot), B5/B14 (flange), B35/B34 (foot+flange)
Features:
The MS Series includes aluminum alloy housing for corrosion resistance, Class F insulation, and Class B temperature rise. It is equipped with precision ball bearings, low-noise fans, and durable terminal blocks. Designed for continuous S1 duty and inverter operation within a moderate torque range. Lightweight construction makes it ideal for applications requiring ease of handling and installation.
Suitable industries:
HVAC systems, packaging equipment, light conveyors, agricultural machinery, and general-purpose OEM machines requiring efficient and economic electric drive solutions.
TG SERIES
A high-efficiency, robustly engineered three-phase motor designed for consistent operation under demanding load conditions. The TG Series delivers premium performance with enhanced thermal characteristics and long service life, making it ideal for intensive industrial use.
Voltage: 230/400V or 400/690V
Pole: 2, 4, 6
Frame: IEC 80 – 355
RPM: 3000 / 1500 / 1000
Enclosure: TEFC, IP55 or IP56 (on request)
Power range: 0.75 – 315 kW
Mounting: B3, B5, B35, and other IEC-compatible configurations
Features:
The TG Series features a cast iron housing for superior mechanical strength, tropicalized windings for humid environments, and VPI-impregnated stators for enhanced electrical insulation. It supports VFD use with up to 15:1 constant torque (MG1 Part 31 compliant), includes high-quality seals, oversized bearings, and multiple drain plug options. Designed for continuous-duty operation even in elevated ambient temperatures.
Suitable industries:
Steel plants, water pumping stations, marine machinery, material handling systems, and demanding process industries requiring durable and efficient electric motors.
Technical Catalog
