Single-Phase General Purpose Motors
MY/MYT SERIES SINGLE PHASE MOTORS
Model: MY / MYT Series Single-Phase Motor
A lightweight single-phase motor series with a simple capacitor-start configuration, optimized for space-saving machines and quiet operation.
Voltage: 110V / 220V
Pole: 2 or 4
Frame: IEC 56 – 90
RPM: 3600 / 1800
Enclosure: TEFC, IP54 / IP55
Power range: 0.12 – 2.2 kW
Mounting: IEC B3/B5/B14
Features:
These models offer low starting current and reliable running performance in small installations. The MYT variant includes thermal protection and reinforced aluminum frame for better structural integrity. Both models use shaded pole or capacitor-start designs depending on size, with maintenance-free sealed bearings.
Suitable industries:
Fans, water pumps, small machines, household industrial equipment, air movement systems, and OEM platforms with single-phase access.
Power Range / Specifications:
Input Power: Typically from 0.12 kW to 4 kW
Reduction Ratios: Can exceed i = 1000:1 depending on configuration
Mounting: Universal (foot or flange mounting)
Features: High torque output, compact structure, aluminum housing, good heat dissipation
Suitable Industries:
Conveyor and handling systems
Packaging lines
Textile machinery
Food processing equipment
Applications requiring compact gearboxes with very low output speeds
ML2 SERIES

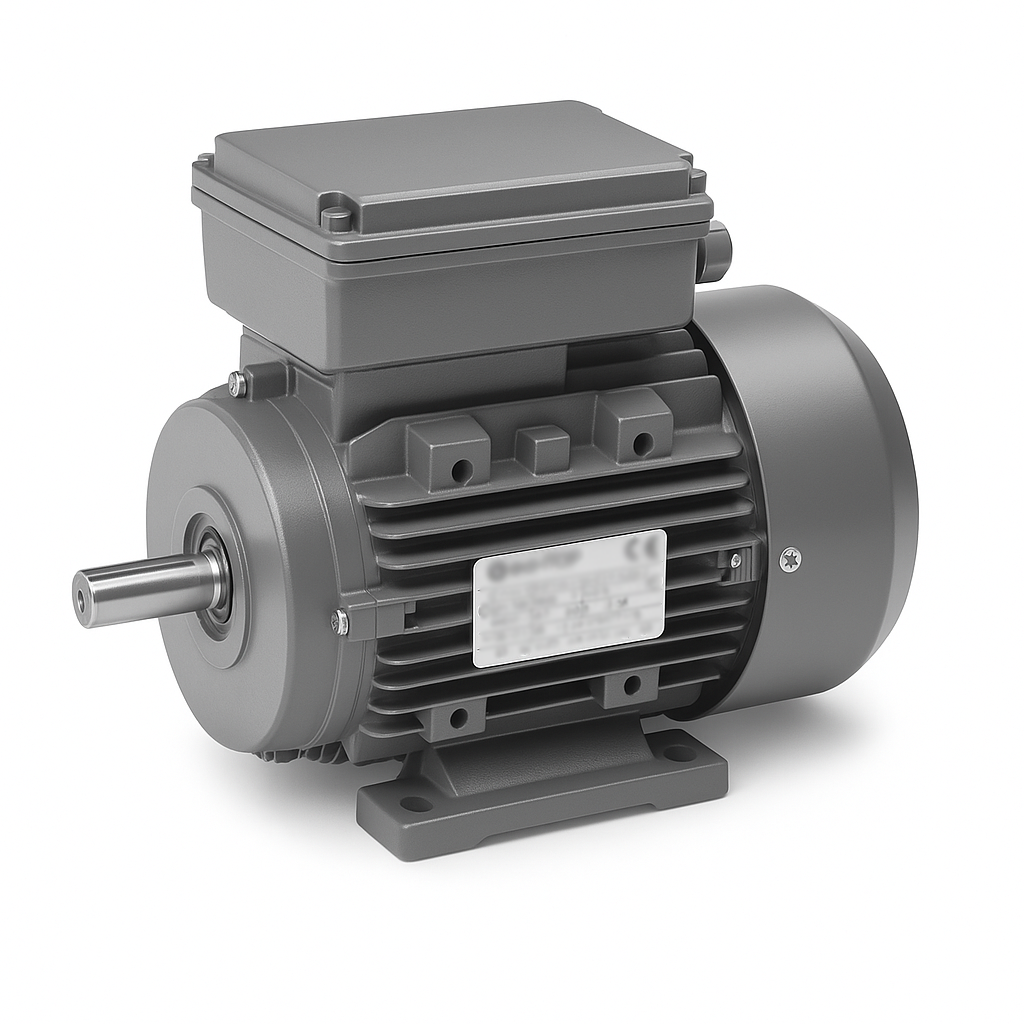

Model: ML2 Series Enhanced Single-Phase Motor
An upgraded version of the ML series featuring improved starting torque, thermal protection, and power density. Designed for continuous-duty single-phase applications in industrial and light commercial systems.
Voltage: 230V ±5%
Pole: 4
Frame: IEC 63 – 100
RPM: 1800
Enclosure: TEFC, IP55
Power range: 0.55 – 1.5 kW
Mounting: IEC B3, B5, B14 convertible
Features:
The ML2 series integrates both start and run capacitors, offering high torque during start-up and smooth running under load. Die-cast aluminum housing supports better heat dissipation, while the PTO thermal overload sensor enhances motor safety. Class F insulation, compact axial fan cooling, and vibration-resistant foot design make it suitable for demanding single-phase tasks.
Suitable industries:
HVAC, commercial pumping, fans, small compressors, woodworking machinery, and compact material transfer applications.
Power Range / Specifications:
Input Power: Typically from 0.12 kW to 4 kW
Reduction Ratios: Can exceed i = 1000:1 depending on configuration
Mounting: Universal (foot or flange mounting)
Features: High torque output, compact structure, aluminum housing, good heat dissipation
Suitable Industries:
Conveyor and handling systems
Packaging lines
Textile machinery
Food processing equipment
Applications requiring compact gearboxes with very low output speeds
MY2 SERIES CAPACITOR RUN MOTOR

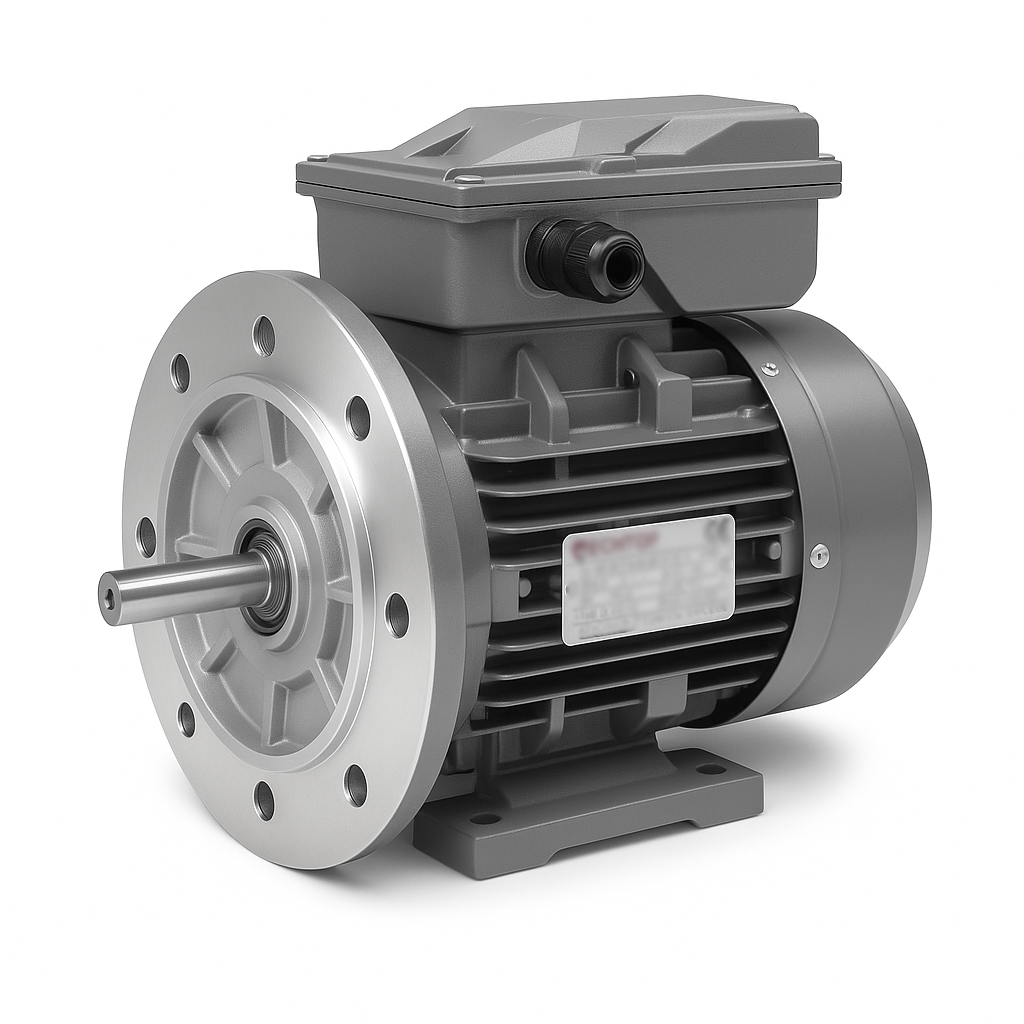

Model: MY2 Series Single-Phase Capacitor Run Motor
A compact and efficient single-phase induction motor designed for continuous-duty applications where moderate starting torque is sufficient. Constructed with a lightweight aluminum housing and capacitor-run design, it is ideal for small OEM and residential machinery.
Voltage: 220V / 230V
Pole: 2, 4
Frame: IEC 56 – 90
RPM: 3600 / 1800
Enclosure: Totally Enclosed Fan Cooled (TEFC), IP54/IP55
Power range: 0.12 – 2.2 kW
Mounting: B3/B5/B14 options available
Features:
The MY2 Series uses a permanent capacitor run design, providing quiet and vibration-free operation. Built with die-cast aluminum housing, thermal protection, and sealed bearings, this motor is compact and maintenance-friendly. Suitable for devices that do not require high starting torque.
Suitable industries:
Fans, blowers, centrifugal pumps, humidifiers, low-load machinery, and household or light-duty automation systems.
Voltage: 110V / 220V / 380V
Pole: 2, 4, 6, 8
Frame: IEC 56 – 100
RPM: 3600 / 1800 / 1200 / 900
Enclosure: Totally Enclosed Fan Cooled (TEFC), IP54 / IP55
Power range: 0.12 – 3.7 kW
Mounting: IEC B3, B14, B5, or combinations
Features:
The ML series includes capacitor start or capacitor start/run configurations depending on power size. Built with aluminum frames and sealed bearings, these motors are suitable for small machinery in confined spaces. Class B or F insulation ensures stable thermal operation, and shaft seals offer protection from moisture. Vibration-damping feet and low-noise fans make this series ideal for indoor equipment.
Suitable industries:
Food processing, commercial pumps, small belt-driven systems, portable equipment, and general OEM systems requiring single-phase supply.
Single-Phase START ONLY Motors
MC SERIES CAPACITOR START MOTOR

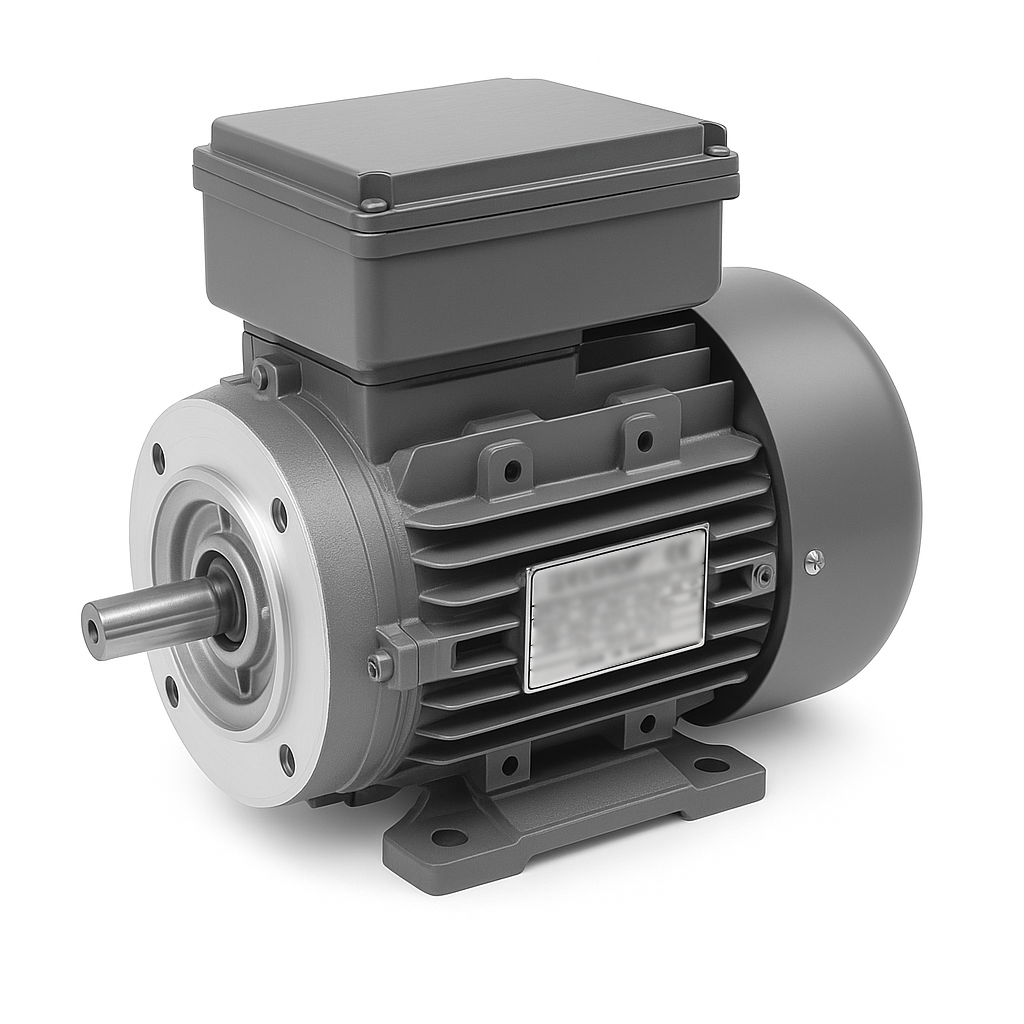

Model: MC Series Single-Phase Capacitor Start Motor
A rugged single-phase induction motor built for applications that require high starting torque but operate intermittently. The capacitor-start design delivers quick acceleration for hard-to-start loads.
Voltage: 220V / 230V
Pole: 2, 4
Frame: IEC 56 – 100
RPM: 3600 / 1800
Enclosure: Totally Enclosed Fan Cooled (TEFC), IP54/IP55
Power range: 0.12 – 3.0 kW
Mounting: B3/B5/B14 convertible
Features:
The MC Series utilizes a start capacitor only, providing high torque during motor startup. It is not designed for continuous duty but is ideal for cyclic operations. Includes Class B or F insulation, cast aluminum body, and robust internal switch mechanism.
Suitable industries:
Air compressors, high-inertia fans, woodworking tools, garage doors, gate openers, and small industrial machinery requiring a short-duty, high-torque start.
