elastomeric coupling
Provide reliable power transmission and shock absorption between shafts. Commonly used in motor and gearbox systems.

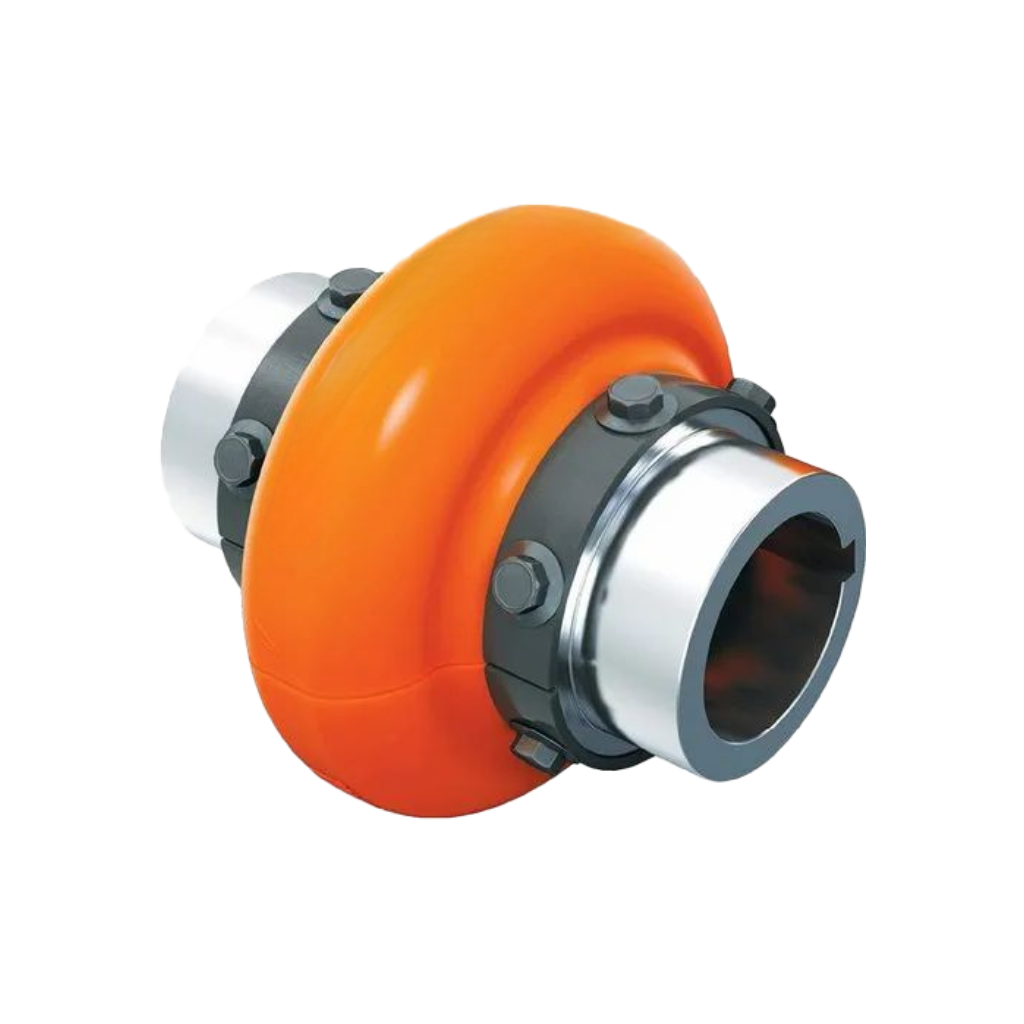

TDmega
Model: TDmega
A high-performance elastomeric coupling with a split-in-half polyurethane element that allows quick installation and visual maintenance. TDmega offers versatile mounting options for standard and spacer designs.
Torque range: 190 – 340,200 lb-in (22 – 38,442 Nm)
Sizes available: E2 to E140 (Close-Coupled), ES2-R to ES80 (Spacer)
Temperature range: -40°C to +93°C
Misalignment capacity: Up to 4° angular and 4.8 mm parallel
Mounting types: Straight bore, Taper-Lock®, QD bushing hubs
Material: Polyurethane element bonded to carbon steel, stainless, or plated hubs
Features: High damping capacity, no lubrication, radial bolting, interchangeable hubs, ATEX II 2GD certified
Suitable industries: Cement & aggregate, paper and forestry, compressors, industrial blowers, cranes and hoists, pumps, material handling, general processing systems

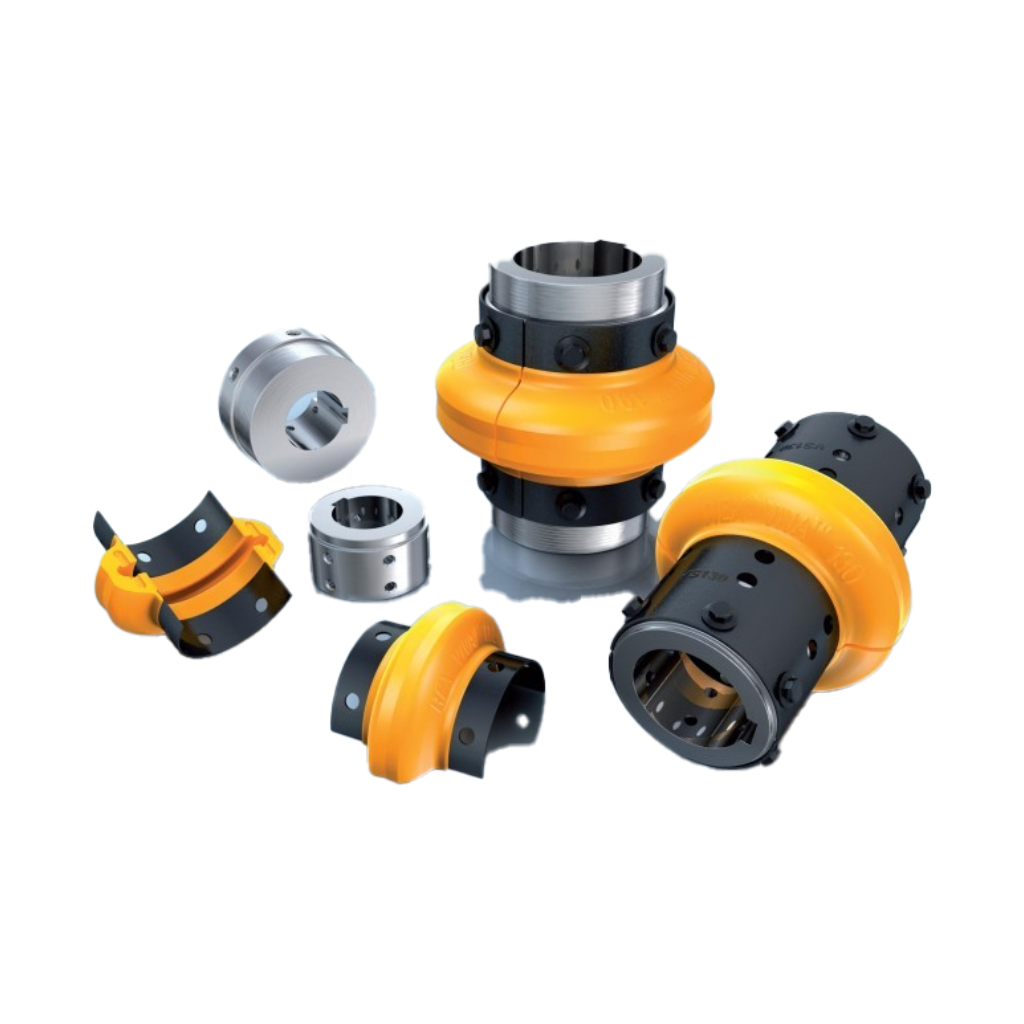

TDvia
Model: TDvia
An ultra-durable elastomeric coupling known for extreme torque density and shaft spacing flexibility. TDvia offers superior resistance in chemically harsh or humid environments.
Torque range: 238 – 425,250 lb-in (28 – 48,053 Nm)
Sizes available: V110 to V460 (Close-Coupled and Spacer)
Temperature range: -40°C to +93°C
Misalignment capacity: Up to 9.4 mm angular and 3.2 mm radial
Mounting types: Tapered bushing, QD bushing, custom spline options
Material: Hydrolytically stable urethane, steel hubs, stainless or nickel-coated shoes available
Features: Highest torque-to-size ratio, double radial bolt patterns, zero-backlash bonding, easy replace-in-place element swap
Suitable industries: Steel, chemical, pulp & paper, mining, marine drives, vibrating equipment, and heavy-duty compressors
