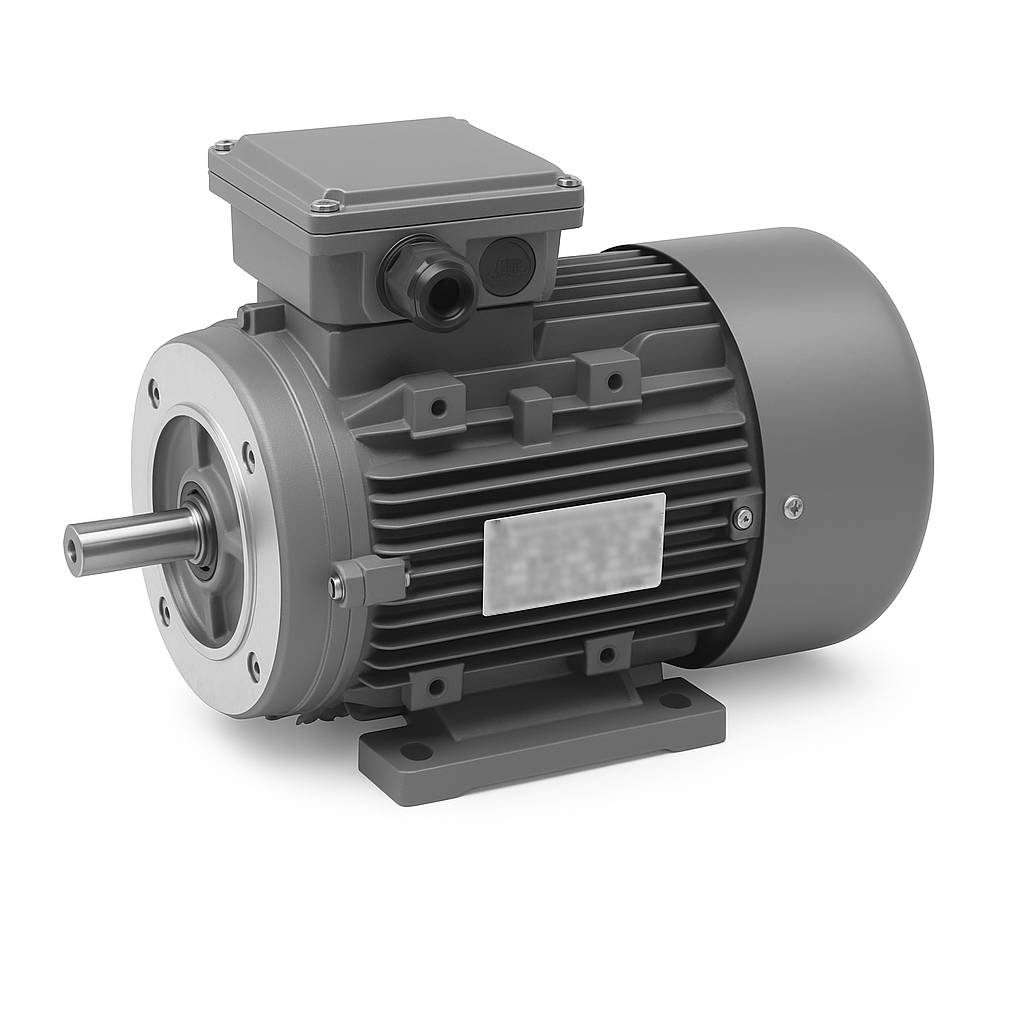

MSB SERIES THREE-PHASE BRAKE MOTOR(Three-Phase Brake Motors)

Model: MSB Series Three-Phase Brake Motor
A three-phase asynchronous motor integrated with a DC electromagnetic brake unit. Developed for precise stopping, safe holding torque, and frequent start/stop duty cycles in controlled environments.
Voltage: 230/400V or 400/690V
Pole: 2, 4
Frame: IEC 63 – 160
RPM: 3600 / 1800
Enclosure: TEFC, IP55
Power range: 0.12 – 15 kW
Mounting: B3, B5, B14, multi-mountable
Features:
The MSB series uses a spring-applied brake mechanism with fast stopping response (as low as 5–80 milliseconds). Includes manual brake release, shielded bearings, and optional

Voltage: 230/460V
Pole: 2, 4
Frame: 56C – 215T (NEMA), 63 – 132 (IEC)
RPM: 1800 / 3600
Enclosure: Totally Enclosed Fan Cooled (TEFC)
Power range: 1/3 – 15 HP
Mounting: Multimount design with removable feet (B3/B34/B35, TC options available)

Features:
The brake motor is designed to meet NEMA Premium energy efficiency standards and comes equipped with a rectifier for 208–230V or 460V operation. It includes a manual release lever for safety, a 1.15 service factor, and a durable brake unit factory-installed and tested. The design features include a full aluminum frame, solid-state brake control, and compatibility with both rigid base and C-face mounting. The brake system is spring-applied and automatically engages when power is cut, offering reliable holding torque in vertical and horizontal installations. It comes with a 24-month warranty from the purchase date.

Suitable industries:
Packaging machines, conveyor systems, lifting and hoisting applications, CNC positioning, door and gate automation, and braking-driven production lines.
